Automated slide stainer SS-30

SS-30 stainer is supplied with a PC dedicated software that offers the option to define protocols and modify the list of saved reagents from the convenience of a PC.

It has also reporting capabilities through a USB plug to acquire data, displaying real status of the running protocols and managing reports and errors



User and specimen safety

Lab-friendly integrated filtration system equipped with a charcoal filter and individual lids for the reagent stations to avoid evaporation of reagents.Optional adaptor for the laboratory general extraction system.

  • Back-up battery with 2h autonomy to finish the staining protocols in case of power failure. External 12V power supply.

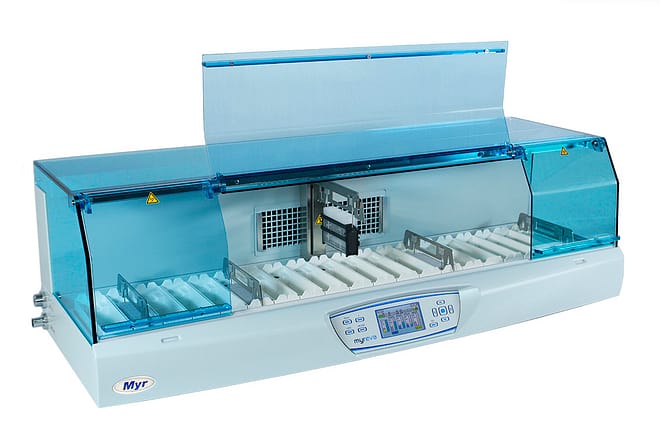

  • The transparent hood is equipped with two hinged doors (loading/unloading stations) to reduce the exposure to reagents.
  • Water overflowing in the stainer is secured thanks to an innovative two water level sensors system.
  • The Reagent Management System (RMS) keeps track of reagent usage and ensures an optimal staining quality
    (available only in version SS-30H)

Technical Data Slide Stainer SS-30

Sample typeHistological and/or cytological
Staining capacityUp to 5 racks simultaneously
Slide rack capacity30 slides
Number of programsUp to 20 programs with max. 50 steps each
Immersion timeFrom 1 s to 59 m 59 s per step
Agitation systemIndependently programmable for each station
Selectable parametersNumber, speed and amplitude of dips
Drain functionMinimizes reagent carryover
Number of stations20 vessels with individual lid
Reagent stationsUp to 19
Water stationsUp to 3
Loading stationsUp to 2
Unloading stationsUp to 3 (2 if drying station is available)
Drying station1 (available only in SS-30H)
Drying station temperature30 to 70ºC
Reagent stations capacity300 ml
Fume extraction systemCharcoal filter
Nominal voltage100-240 VAC/50-60 Hz
Backup battery capacity2 h
Dimensions
Length1.200 mm
Width440 mm
Height368 mm
Weight55 kg

Power requirements

SS-30100-240VAC50/60Hz0,17A
SS-30H100-240VAC50/60Hz0,76A

Ordering Information

SS-30Automated Slide Stainer
100-240v/50-60 Hz
SS-30HAutomated Slide Stainer with drying station
100-240v/50-60 Hz

Optional Accessories

SS30-059Adapter for THERMO-MICROM rack (30 slides)
SS30-200Load station LEICA racks
SS30-200BLid for load station LEICA rack
SS30-201Adapter for LEICA plastic rack (30 slides)
SS30-201BAdapter for LEICA metal rack (30 slides)
SS30-202Adapter for SAKURA rack (20 slides)
SS30-204Adapter for MEDITE rack (20 slides)
SS30-205Adapter for MEDITE rack (30 slides)
SS30-210Megaslides adapter
