Multi-Headed Teaching Microscope

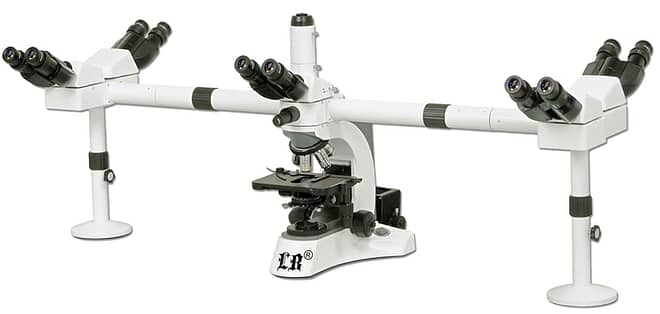

High level microscopes with multiple heads are available, including the LB-984 Multi-Head Microscopes (for 6 users; 5 Users with a Binocular Head and 1 User with a Trinocular Head) with Extra Wide Field and Infinite Plan Optical System (Infinity Color Corrected System) (Anti-Fungus). The optical system is dependable and of excellent quality. A camera can be attached to this microscope (optionally).

Features

  • Sharp image display with excellent optical system.
  • Small space occupancy with integral stand design, low environment requirement with Anti-Fungus technology.
  • User-friendly and comfortable operation with ergonomic design.
  • With the features of Infinite Optical System, Effective Illumination, LED Pointer and Image Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.

Technical Specifications

Applications


LB-984 Multi-Head Microscopes (for 6 users; 5 Users with a Binocular Head and One User with a Trinocular Head) with Extra Wide Field and Infinite Plan Optical System(Infinity Color Corrected System) (Anti-Fungus)are mainly used in medical teaching and biological teaching. They also can be used for biological analysis for more experts at the same time. They can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.

Optical System

Infinite Optical System



Viewing Head

Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

1PC

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm

4PCS

Eyepiece

Extra Wide Field Eyepiece EW10×/ 20

10PCS

Nosepiece

Backward Quintuple Nosepiece



Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×



Condenser

Swing-out Condenser NA 0.9/ 0.25



Focusing

Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm



Stage

Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm



Kohler Illumination

External Illumination, Halogen Lamp 12V/ 50W



Pointer

Green LED Pointer, Brightness Adjustable
Dual Color LED Pointer, Brightness Adjustable (optional)


Photo AttachmentUsed for Nikon or Canon DSLR cameras (optional)
Video AdapterC Mount 1×, (optional)
C Mount 0.5× (optional)
