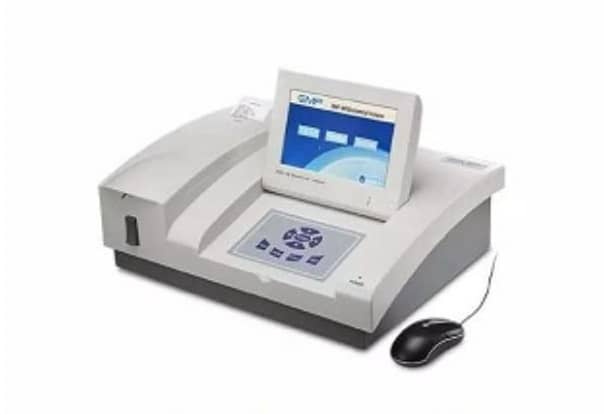

Semi-automated Clinical Chemistry Analyzer AMP Piccos II is a semi-automated clinical chemistry analyzer for simple, efficient and accurate performance of any photometric clinical chemistry test. Due to its versatility and flexibility the fields of application are multiple – either as a powerful multi-purpose clinical chemistry workstation in small laboratories or as a dedicated analyzer for less frequently performed specific analytes or as a back-up analyzer being on call 24 hours a day. 7 standard and 1 optional wave lengths protocols of all routine parameters pre-programmed simple adjustment according to individual requirements flow cell temperature controlled at 25°, 30° or 37°C graphic presentation of reaction and calibration curves results can be reported parameter or patient oriented enhanced quality control data management
Description
- Back spectro photometry, 7 hard membrane filters, separate signal process circuit for each wavelength, filters select completed electronically, no mechanical movement
- Hermetic solid-state optical system, low contamination of dust and dampness, long life time of hard membrane filters
- Titanium alloy flow cell with small capacity and minimize cross-contamination
- 200000 patients test data and 300 test programs can be saved
- Adopt 7’’touch screen, 800×480pixels
Specifications
| Analysis method: | kinetics, end point, two point |
| Light source: | halogen lamp 10W/6V |
| Optical system: | 340-800nm |
| 7 standard filter: | 340, 405, 492, 510, 546, 578, 630nm wavelength, accuracy:±2nm |
| Abs range: | 0.000-4.000Abs, resolution: 0.001Abs |
| Flow cell: | titanium quartz alloy, 32uL; optical path: 10mm |
| Temperature: | PELTIER elements,37℃, Room,±0.1℃ |
| Precision: | error<1%, drift<5mAbs/hr |
| Printer: | thermal printer, 57mm width paper |
| Display: | 7〃 touch screen,800×480 pixels |
| CPU: | Samsung S5PV210, Cortex TM-A8, 1GHz |
| Memory: | DDR2 SDRAM, 256MB Flash: 4GB |
| Interface: | 3 USB ports ,1 RS232 serial port |
| Dimensions: | 400(L)x290(W)x165(H)mm |
| Package Size | 490(L)*410(W)*300(H)mm |
| Temperature: | 10℃-30℃ |
| Humidity: | 30%-80% |
| Power supply: | AC100-240V 50/60Hz |
| Language | English |
