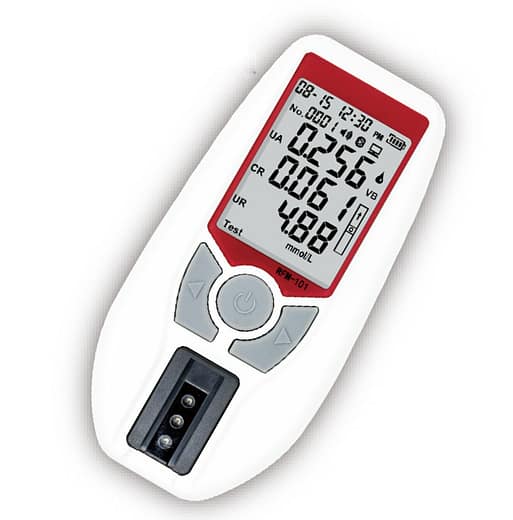

The goal of the renal function analysis meter is to measure uric acid (UA), creatinine (CR), and urea (UR) quantitatively in capillary blood, venous whole blood, plasma, and serum. The simple device comprises of a portable meter that examines the amount and hue of light reflected from a Test strip’s reagent area, providing prompt and precise results.
Results are provided by the Renal Function Analysis Meter. Up to 500 results and records can be stored in the Renal Function Analysis Meter. Battery charging can be used to power the meter.
Rechargeable
Built-in 1200mAh Li-ion battery and support long-endurance
*Bluetooth
Use Bluetooth to sync data with phone and bluetooth printer conveniently
*Rapid Test
Test result in 300 seconds
*Mobile Application
Easy management onphone APPs
*Micro Specimen
35 uL of whole blood (perpheraland venous human whole blood),plasma and serum
*Program Update
Automatically update meter program to latest version
To Ensure Accurate Result
•Read instructions carefully and complete any necessary training before use.
• Use the code chip that is included in each box of test strips.
• Only use the Renal Function test strips with the Renal Function Analysis Meter.
• For in vitro diagnostic use only. Renal Function Analysis Meter is only to be
used outside the body for testing purposes.
• For professional use.
• Keep out of reach of children
Specification
| Methodology | Reflectance Photometer |
| Measurement Range | UA:0.090 mmolL~1.200 mmol/L(1.51 mg/dL~20.17 mg/dL) CR:0.044 mmolL~1.320 mmol/L(0.50 mg/dL~14.93 mg/dL) UR:0.90 mmolL~40.00 mmol/L (5.41 mg/dL~240.2 mg/dL) |
| Specimen | whole blood(capillary and venous ),plasma and serum |
| Power Source | 1200mAh built-in lithium battery |
| Battery Endurance | After cycle charge 300 times,electric quantity reduce 30% |
| Units of Measurement | mmol/L, mg/dL |
| Memory | 500 records |
| Automatic Shut Off | 5 minutes after last use |
| Meter Size | 135*66*19mm(L*W*H) |
| weight | 90g |
| Meter Storage Conditions | 0-55°C;≤ 90% RH |
| System Operating Conditions | 10-35°C; s 90% RH ;height <seal-level 2000m |
| Test strip Storage Conditions | 2~30C;≤ 90% RH |
| Warranty Period | 2 years |
| Meter Shelf Life | 4 years |
| Test Strip Shelf Life | 1 years |
