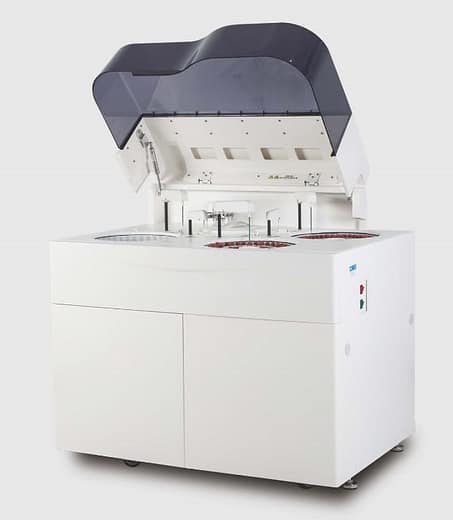

PKL PCC300 Automated Chemistry Analyzer
• Assay methods: End Point, Kinetic, Fix time etc.
• Principle: Photoelectric colorimetry
• Light Source: Halogen lamp 12V/20W
• Photometry range: 0-6.0Abs
• Resolution: 0.0001Abs
• Wavelength: 10 wavelengths (340nm-800nm)
• Throughput: 330tests/hour
• Reagent tray: 60 reagent positions
• Sample tray: 71 sample posltlons, including detergent, standard, QC, STAT positions
• Reaction tray: 90 reaction cuvettes
• Sample volume: 2ul-35ul, with 0.05ul increment
• Reagent volume. R1.10ul-300ul, R2.10ul-300ul with 0.5ul increment
• Minimum reaction volume. 150ul
• Maximum reaction time. 14 minutes
• Water Consumption: 8L/hour under working status
• Clean unit: 8-step auto-washing system with detergent and 37°C water
• Calibration:Calibration reset, select best test point by reaction curve, no need second calibration,
Line/non-line;multi-standards assay
• Control rules: Westgard multi-rule, Cumulative sum check, Twin plot
• 3 level controls for each item,analyzing and printing QC analysis diagram
• Temperature contrai· incubator 37±0,1°C
• Power supply· AC110/230(1 + 10%)V,50/60Hz,500VA
• Ambient: Operating temperature: 10∼30°C , Relative humidity:85% , Atmospheric pressure: 86-
106kPa
Features
• 24 hour non-stop cooling system to ensure reagent at 2-8°C
• Dual-unattached durable ceramic syringes to ensure accuracy & precision
• Collision protection in both vertical and horizontal directions, stop & alarm automatically once
touching barrier, not affect former tests
• Automatic eligible cuvettes detection & selection
• Select best test point by reaction curve, create new factor automatically
• High accurate optical system
